ATTINY24A-SSU 8bit MCU 20MHz 12 I/O 1.8V to 5.5V SOIC-14

Features

• High Performance, Low Power AVR® 8-bit Microcontroller

• Advanced RISC Architecture

–120 Powerful Instructions – Most Single Clock Cycle Execution

–32 x 8 General Purpose Working Registers

–Fully Static Operation

• High Endurance, Non-volatile Memory Segments

–2K/4K/8K Bytes of In-System, Self-programmable Flash Program Memory

•Endurance: 10,000 Write/Erase Cycles

–128/256/512 Bytes of In-System Programmable EEPROM

•Endurance: 100,000 Write/Erase Cycles

–128/256/512 Bytes of Internal SRAM

–Data Retention: 20 years at 85°C / 100 years at 25°C

–Programming Lock for Self-programming Flash & EEPROM Data Security

• Peripheral Features

–One 8-bit and One 16-bit Timer/Counter with Two PWM Channels, Each

–10-bit ADC

•8 Single-ended Channels

•12 Differential ADC Channel Pairs with Programmable Gain (1x / 20x)

–Programmable Watchdog Timer with Separate On-chip Oscillator

–On-chip Analog Comparator

–Universal Serial Interface

• Special Microcontroller Features

–debugWIRE On-chip Debug System

–In-System Programmable via SPI Port–Internal and External Interrupt Sources

•Pin Change Interrupt on 12 Pins

–Low Power Idle, ADC Noise Reduction, Standby and Power-down Modes

–Enhanced Power-on Reset Circuit–Programmable Brown-out Detection Circuit with Software Disable Function

–Internal Calibrated Oscillator–On-chip Temperature Sensor

• I/O and Packages–Available in 20-pin WQFN/VQFN, 14-pin SOIC, 14-pin PDIP and 15-ball UFBGA

–Twelve Programmable I/O Lines

•Operating Voltage:

–1.8 – 5.5V

• Speed Grade:

–0 – 4 MHz @ 1.8 – 5.5V–0

– 10 MHz @ 2.7

– 5.5V–0 – 20 MHz @ 4.5 – 5.5V

• Industrial Temperature Range: -40°C to +85°C

• Low Power Consumption

–Active Mode:

•210 µA at 1.8V and 1 MHz

–Idle Mode:

•33 µA at 1.8V and 1 MHz

–Power-down Mode:

•0.1 µA at 1.8V and 25°C

Pin Configurations

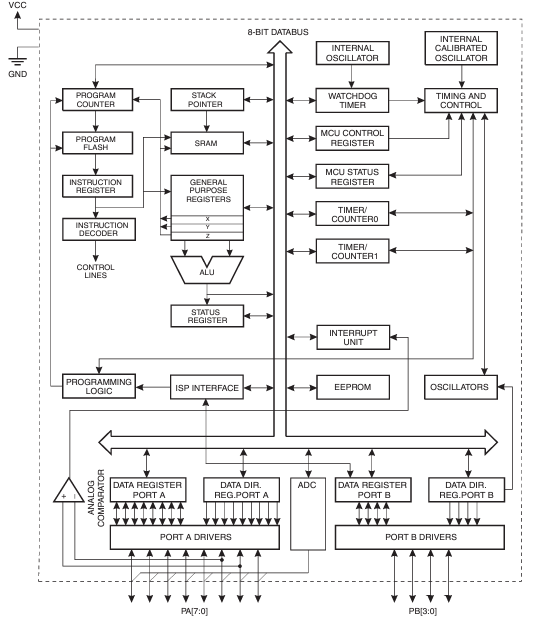

Block Diagram

The AVR core combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
