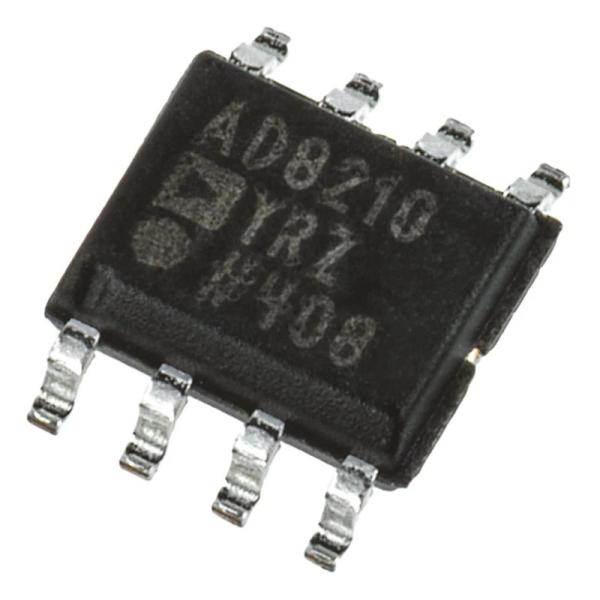

Current Sense Amplifiers AD8210YRZ 4.5V-5.5V 2mA 0.5% High Voltage, Bidirectional Current Shunt Monitor

FEATURES
±4000 V HBM ESD
High common-mode voltage range
-2 V to +65 V operating
-5 V to +68 V survivalBuffered output voltage
5 mA output drive capability
Wide operating temperature range: -40°Cto +125°CRatiometrichalf-scale output offsetExcellent ac and dc performance
1 μV/°C typical offset drift
10 ppm/°C typical gain drift120 dB typical CMRR at dc80 dB typical CMRR at 100 kHzAvailable in 8-ead SOlCQualified for automotive applications

APPLICATIONS
Current sensingMotor controls
Transmission controls
Diesel injection controls
Engine management
Suspension controlsVehicle dynamic controlsDC-to-dc converters

GENERAL DESCRIPTION
The AD8210 is a single-supply, difference amplifier ideal foramplifying small differential voltages in the presence oflargecommon-mode voltages,The operating input commonmodevoltage range extends from -2 V to +65 V.The typical supplyvoltage is 5 V.
The AD8210 is offered in a $OIC package, The operatingtemperature range is -40°C to +125°℃.
Excellent ac and dc performance over temperature keep errorsin the measurement loop to a minimum, Offset drift and gaindrift are guaranteed to a maximum of8 μV/°C and 20 ppm/°Crespectively.

The output offset can be adjusted from 0.05 V to 4.9 V witha 5Vsupply by using the Veerl pin and the Vur2 pin. With theVnrl pin attached to the V+ pin and the Ver2 pin attached tothe GND pin, the output is set at half scale. Attaching both Vurland Wner2 to GND causes the output to be unipolar, startingnear ground, Attaching both Vnen and Vner2 to V+ causes theoutput to be unipolar, starting near V+. Other ofsets can beobtained by applying an external voltage to VeErl and Vnr2.
