| Brand Name : | STMicroelectronics |
| Model Number : | STGW35HF60WD |
| Price : | Negotiations |
| Supply Ability : | T/T, Western Union |
| Delivery Time : | 1 to 3 Days |

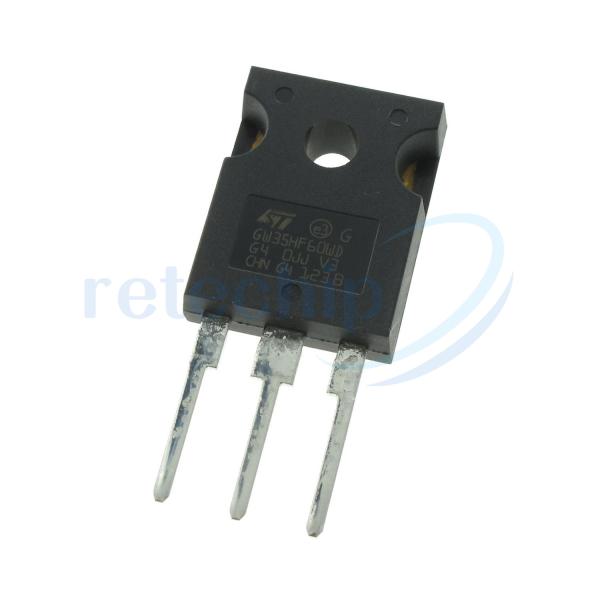

The STGW35HF60WD is based on a new advanced planar technology concept to yield an IGBT with more stable switching performance (Eoff) versus temperature, as well as lower conduction losses. The device is tailored to high switching frequency operation (over 100 kHz).
Figure 1. Internal schematic diagram
■ Improved Eoff at elevated temperature
■ Minimal tail current
■ Low conduction losses
■ VCE(sat) classified for easy parallel connection
■ Ultra fast soft recovery antiparallel diode
Electrical characteristics:
(TJ = 25 °C unless otherwise specified)
Specifications:
| Product Attribute | Attribute Value |
|---|---|
| TO-247 | |
| Through Hole | |
| Single | |
| 600 V | |
| 2.5 V | |
| - 20 V, 20 V | |
| 60 A | |
| 200 W | |
| - 55 C | |
| + 150 C | |
| Gate-Emitter Leakage Current: | 100 nA |
