SN74LVC244APWR Buffers and Line Driver 8 Input 8 Output 1.6V to 3.6V TSSOP-20
Features
• Operates From 1.65 V to 3.6 V
• Inputs Accept Voltages to 5.5 V
• Specified From –40°C to +85°C and
–40°C to +125°C
• Maximum tpd of 5.9 ns at 3.3 V
• Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
• Supports Mixed-Mode Signal Operation on
All Ports (5-V Input or Output Voltage With
3.3-V VCC)
• Ioff Supports Live Insertion, Partial-Power-Down
Mode, and Back-Drive Protection
• Can Be Used as a Down Translator to Translate
Inputs From a Maximum of 5.5 V Down
to the VCC Level
• Available in Ultra Small Logic QFN Package (0.5
mm Maximum Height)
• Latch-Up Performance Exceeds 250 mA Per
JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model
– 1000-V Charged-Device Model
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Non-Inverting | |
| - 24 mA | |
| 24 mA | |
| 1 uA | |
| 3.6 V | |
| 1.65 V | |
| 10 uA | |
| - 40 C | |
| + 125 C | |
| TSSOP-20 | |
| Function: | Buffer/Line Driver |
| Length: | 6.6 mm |
| Logic Family: | LVC |
| Logic Type: | CMOS |
| Number of Channels: | 8 |
| Operating Supply Voltage: | 1.65 V to 3.6 V |
| Output Type: | 3-State |
| Pd - Power Dissipation: | 500 mW (1/2 W) |
| Propagation Delay Time: | 6.7 ns at 2.7 V, 5.7 ns at 3.3 V |
| Subcategory: | Logic ICs |
| Supply Current - Max: | 1 uA |
| Technology: | CMOS |

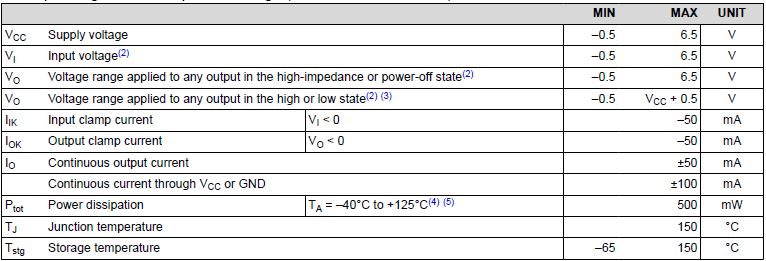

Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)
(1) Stresses beyond those listed under Absolute Maximum Ratings may
cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other
conditions beyond those indicated under Section 6.3 is not implied.
Exposure to absolute-maximum-rated conditions for extended periods
may affect device reliability.
(2) The input and output negative-voltage ratings may be exceeded
if the input and output current ratings are observed.
(3) The value of VCC is provided in the Section 6.3 table.
(4) For the DW package: above 70°C the value of Ptot derates
linearly with 8 mW/K.
(5) For the DB, DGV, N, NS, and PW packages: above 60°C the value
of Ptot derates linearly with 5.5 mW/K.
