IGBT Power Modules 2MBI450VX-120-50 1200V 450A 2-in-1 package
Features
Low VCE(sat)
Low Inductance Module structure
Solderless press-fit terminals
Applications
Inverter for Motor Drives, AC and DC Servo Drives
Uninterruptible Power Supply Systems, Wind Turbines, PV Power
Conditioning Systems

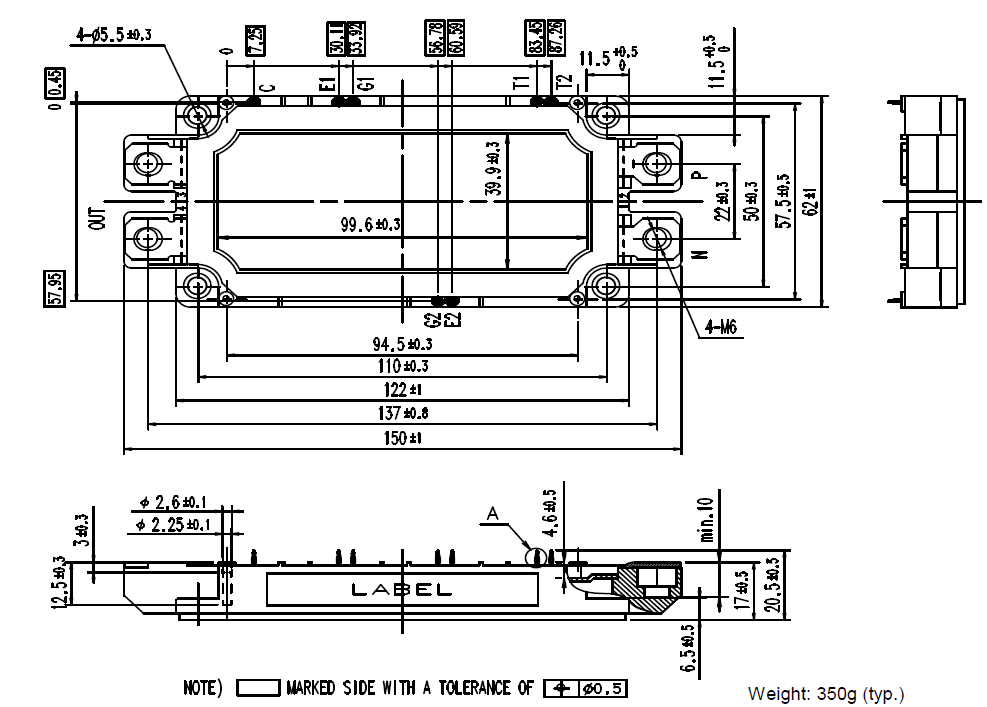

Outline drawing ( Unit : mm )
Absolute Maximum Ratings (at TC= 25°C unless otherwise specified)
| Items | Symbols | Conditions | Maximum Ratings | Units | ||
| Collector-Emitter voltage | VCES | 1200 | V | |||
| Gate-Emitter voltage | VGES | ±20 | V | |||
Collector current | IC | Continuous | TC=25oC | 600 | A | |
| TC=100oC | 450 | |||||
| IC pulse | 1ms | 900 | ||||
| -IC | 450 | |||||
| -IC pulse | 1ms | 900 | ||||
| Collector power dissipation | PC | 1 device | 2270 | W | ||
| Junction temperature | Tj | 175 | oC | |||
| Operating junction temperature | Tjop | 150 | ||||
| (under switching conditions) | ||||||
| Case temperature | Tc | 125 | ||||
| Storage temperature | Tstg | -40 ~ 125 | ||||
Isolation voltage | between terminal and copper base (*1) | Viso | AC: 1min. | 2500 | VAC | |
| between thermistor and others (*2) | ||||||
Screw Torque | Mounting (*3) | - | 3.5 | N m | ||
| Terminals (*4) | - | 4.5 | ||||
