AMC3302DWER Isolation Amplifiers AMC3302 ic integrated circuit SMD/SMT SOIC-16 new original

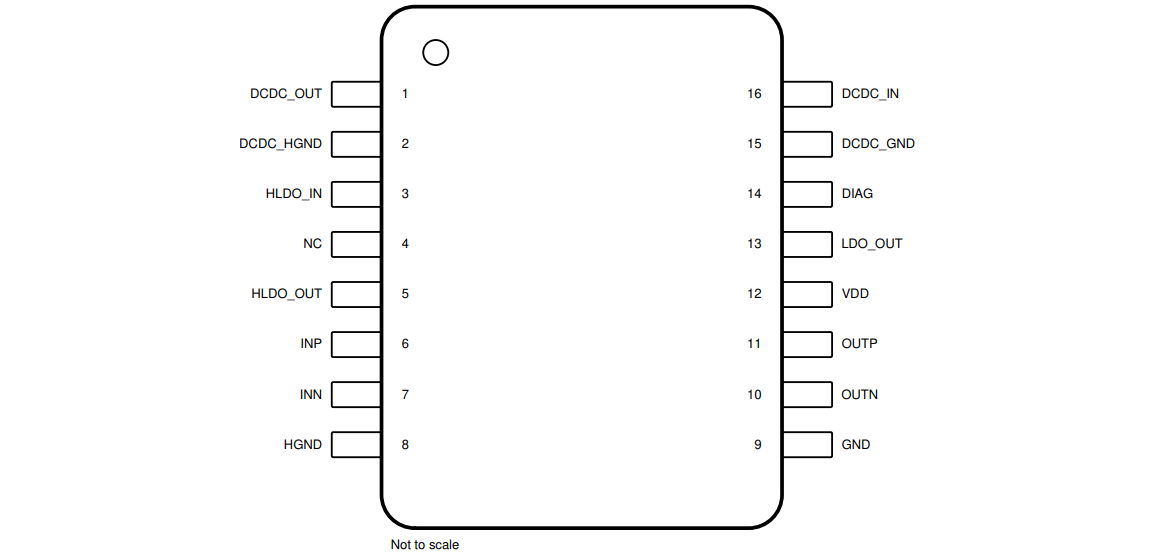

Features

• 3.3-V or 5-V single supply with integrated DC/DC converter

• ±50-mV input voltage range optimized for current measurement using shunt resistors

• Fixed gain: 41

• Low DC errors: – Offset voltage: ±50 μV (max) – Offset drift: ±0.5 μV/°C (max) – Gain error: ±0.2% (max) – Gain error drift: ±35 ppm/°C (max) – Nonlinearity: ±0.03% (max)

• High CMTI: 95 kV/µs (min)

• System-level diagnostic features

• Meets CISPR-11 and CISPR-25 EMI standards

• Safety-related certifications: – 6000-VPK reinforced isolation per DIN VDE V 0884-11 – 4250-VRMS isolation for 1 minute per UL1577

• Fully specified over the extended industrial temperature range: –40°C to +125°C

Applications

• Isolated current sensing in:

– Protection relays

– Motor drives

– Power supplies

– Photovoltaic inverters

Description

The AMC3302 is a precision, isolated amplifier optimized for shunt-based current measurements.

The fully integrated, isolated DC/DC converter allows single-supply operation from the low-side of the device, which makes the device a unique solution for space-constrained applications. The reinforced capacitive isolation barrier is certified according to VDE V 0884-11 and UL1577 and supports a working voltage of up to 1.2 kVRMS. The isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects the low-voltage side from hazardous voltages and damage.

The input of the AMC3302 is optimized for direct connection to a low-impedance shunt resistor or another low-impedance voltage source with low signal levels. The excellent DC accuracy and low temperature drift supports accurate current measurements over the extended industrial temperature range from –40°C to +125°C. The integrated DC/DC converter fault-detection and diagnostic output pin of the AMC3302 simplify system-level design and diagnostics.
