Microchip 8-bit Microcontrollers PIC12F629-I/SN mcu micro controller unit PIC12F629 SOIC-8 1.75KB 64 RAM 6 I/O

Ask Lasest Price
Brand Name :	Microchip Technology
Model Number :	PIC12F629-I/SN
Price :	negotiation
Payment Terms :	T/T, Western Union, MoneyGram
Delivery Time :	5-6days

Add to Cart

Product Details
Company Profile

Microchip 8-bit Microcontrollers PIC12F629-I/SN mcu micro controller unit PIC12F629 SOIC-8 1.75KB 64 RAM 6 I/O

Product Description:

8-Pin, Flash-Based 8-Bit CMOS Microcontrollers

High-Performance RISC CPU:

• Only 35 Instructions to Learn - All single-cycle instructions except branches

• Operating Speed: - DC – 20 MHz oscillator/clock input - DC – 200 ns instruction cycle

• Interrupt Capability

• 8-Level Deep Hardware Stack

• Direct, Indirect, and Relative Addressing modes Special Microcontroller Features:

• Internal and External Oscillator Options

- Precision Internal 4 MHz oscillator factory calibrated to ±1%

- External Oscillator support for crystals and resonators

- 5 s wake-up from Sleep, 3.0V, typical

• Power-Saving Sleep mode

• Wide Operating Voltage Range

– 2.0V to 5.5V

• Industrial and Extended Temperature Range

• Low-Power Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Brown-out Detect (BOD)

• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation

• Multiplexed MCLR/Input Pin

• Interrupt-on-Pin Change

• Individual Programmable Weak Pull-ups

• Programmable Code Protection

• High Endurance Flash/EEPROM Cell

- 100,000 write Flash endurance

- 1,000,000 write EEPROM endurance

- Flash/Data EEPROM Retention: > 40 years Low-Power Features:

• Standby Current:

- 1 nA @ 2.0V, typical

• Operating Current:

- 8.5 A @ 32 kHz, 2.0V, typical

- 100 A @ 1 MHz, 2.0V, typical

• Watchdog Timer Current

- 300 nA @ 2.0V, typical

• Timer1 Oscillator Current:

- 4 A @ 32 kHz, 2.0V, typical Peripheral Features:

• 6 I/O Pins with Individual Direction Control • High Current Sink/Source for Direct LED Drive

• Analog Comparator module with: - One analog comparator

- Programmable on-chip comparator voltage reference (CVREF) module

- Programmable input multiplexing from device inputs - Comparator output is externally accessible

• Analog-to-Digital Converter module (PIC12F675):

- 10-bit resolution

- Programmable 4-channel input

- Voltage reference input

• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler • Enhanced Timer1:

- 16-bit timer/counter with prescaler - External Gate Input mode

- Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected • In-Circuit Serial ProgrammingTM (ICSPTM) via two pin

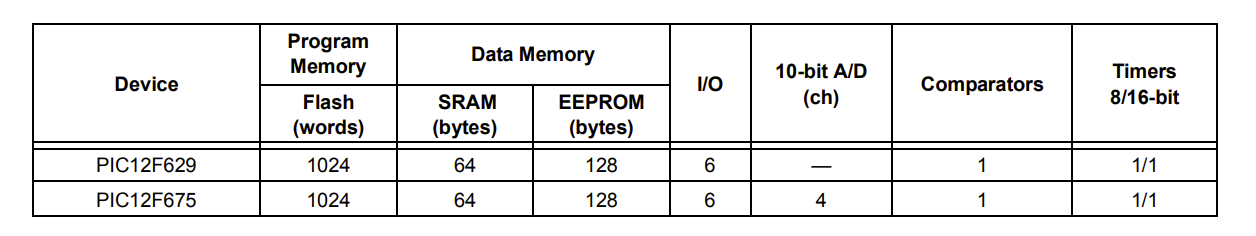

Specifications:

Product Attribute	Attribute Value
Manufacturer:	Microchip
Product Category:	8-bit Microcontrollers - MCU
Program Memory Size:	1.75 kB
Data RAM Size:	64 B
Package / Case:	SOIC-8
Maximum Clock Frequency:	20 MHz
ADC Resolution:	No ADC
Number of I/Os:	6 I/O
Supply Voltage - Min:	2 V
Supply Voltage - Max:	5.5 V
Mounting Style:	SMD/SMT
Data Bus Width:	8 bit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Tube
Brand:	Microchip Technology
Data RAM Type:	RAM
Data ROM Size:	128 B
Data ROM Type:	EEPROM
Height:	1.25 mm
Interface Type:	RS-232, USB
Length:	4.9 mm
Moisture Sensitive:	Yes
Number of Timers/Counters:	2 Timer
Processor Series:	PIC12F
Product:	MCUs
Product Type:	8-bit Microcontrollers - MCU
Program Memory Type:	Flash
Subcategory:	Microcontrollers - MCU
Watchdog Timers:	Watchdog Timer
Width:	3.9 mm
Unit Weight:	0.019048 oz

Packing and Shipping:

shipping	Delivery period	For in-stock parts, orders are estimated to ship out in 3 days. Once shipped, estimated delivery time depends on the below carriers you chose: DHL Express, 3-7 business days. DHL eCommerce,12-22 business days. FedEx International Priority, 3-7 business days EMS, 10-15 business days. Registered Air Mail, 15-30 business days.
	Shipping rates	After confirming the order, we will evaluate the shipping cost based on the weight of the goods
	Shipping option	We provide DHL, FedEx, EMS, SF Express, and Registered Air Mail international shipping.
	Shipping tracking	We will notify you by email with tracking number once order is shipped.
Returning warranty	Returning	Returns are normally accepted when completed within 30 days from date of shipment.Parts should be unused and in original packaging.Customer has to take charge for the shipping.
Returning warranty	Warranty	All Retechip purchases come with a 30-day money-back return policy, This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by customer to follow instructions, product modification, negligent or improper operation
Ordering	Payment	T/T,PayPal, Credit Card includes Visa, Master, American Express.
