Ethernet Ic Chip W5300 Lqfp-100 Integrated Circuit Components Ethernet Controller Chip

Product Description:

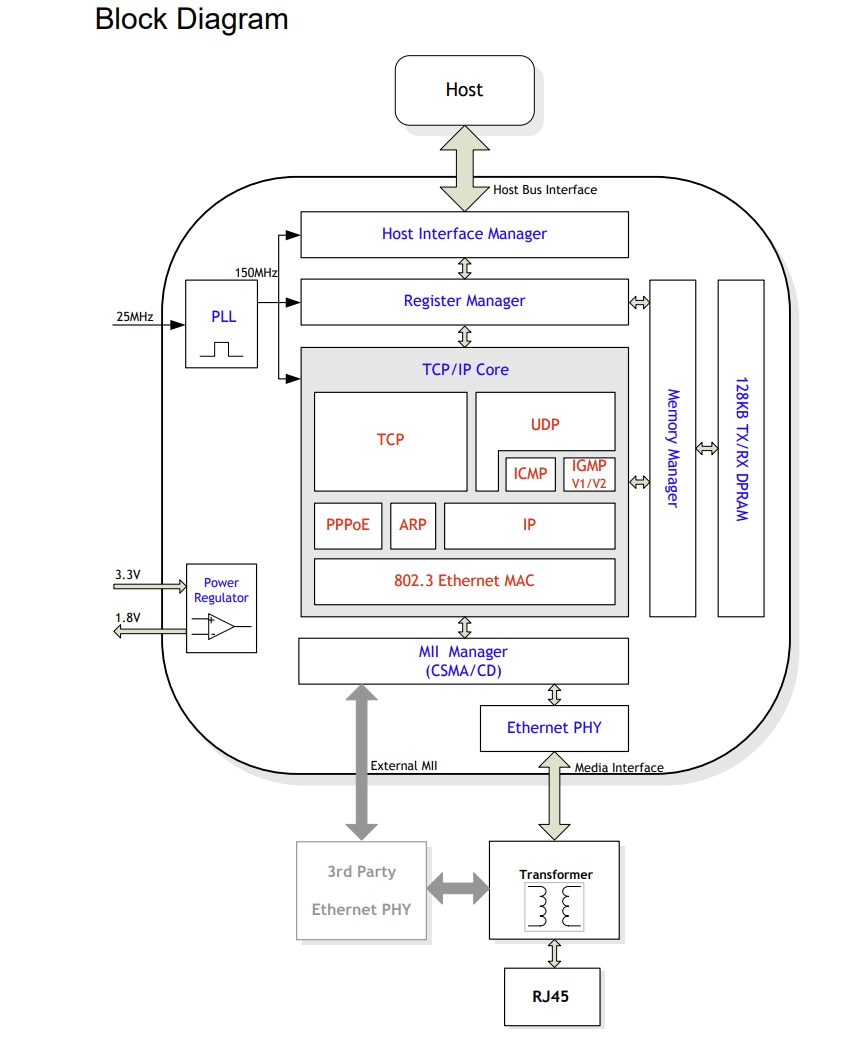

W5300 is a 0.18 µm CMOS technology single chip into which 10/100 Ethernet controller, MAC, and TCP/IP are integrated. W5300 is designed for Internet embedded applications where easy implementation, stability, high performance, and effective cost are required. W5300's target application is the embedded internet solution requiring high performance such as multi-media streaming service. Comparing to existing WIZnet chip solution, W5300 has been improved in memory and data process. W5300 is the most appropriate to the products of IPTV, IP-STB and DTV transferring multi-media data with high-capacity. The Internet connectivity can be implemented easily and quickly only with single chip having TCP/IP protocol and 10/100 Ethernet MAC & PHY.

High-Performance Hardware TCP/IP single chip solutions WIZnet retains the technology of full hardware logic of communication protocols such as TCP, UDP, IPv4, ICMP, IGMP, ARP and PPPoE. In order to provide high-performing data communication, the data communication memory is extended to 128Kbyte and 16bit bus interface is supported in W5300. Users can utilize independent 8 hardware SOCKETs for high speed data communication.

More flexible memory allocation for various applications The memory for data communication can be allocated to each SOCKET in the range of 0~64Kbytes. It is more flexible for users to utilize the memory according to their application. Users can develop more efficient system by concentrating on the application of high performance.

Easy to implements for beginners W5300 supports BUS interface as the host interface. By using direct and indirect access methods, W5300 can easily interfaced to the host as like SRAM memory. The data communication memory of W5300 can be accessed through TX/RX FIFO registers that exist in each SOCKET. With these features, even beginners can implement Internet connectivity by using W5300

Features:

- Supports hardwired TCP/IP protocols : TCP,UDP,ICMP,IPv4,ARP,IGMPv2,PPPoE,Ethernet

- Supports 8 independent SOCKETs simultaneously

- High network performance : Up to 50Mbps

- Supports hybrid TCP/IP stack(software and hardware TCP/IP stack)

- Supports PPPoE connection (with PAP/CHAP Authentication mode)

- IP Fragmentation is not supported - Internal 128Kbytes memory for data communication(Internal TX/RX memory)

- More flexible allocation internal TX/RX memory according to application throughput

- Supports memory-to-memory DMA (only 16bit Data bus width & slave mode)

- Embedded 10BaseT/100BaseTX Ethernet PHY

- Supports auto negotiation (Full-duplex and half duplex) - Supports auto MDI/MDIX(Crossover)

- Supports network Indicator LEDs (TX, RX, Full/Half duplex, Collision, Link, Speed) - Supports a external PHY instead of the internal PHY

- Supports 16/8 bit data bus width - Supports 2 host interface mode(Direct address mode & Indirect address mode) - External 25MHz operation frequency (For internal PLL logic, period=40ns)

- Internal 150MHz core operation frequency (PLL_CLK, period=about 6.67ns)

- Network operation frequency (NIC_CLK : 25MHz(100BaseTX) or 2.5MHz(10BaseT))

- 3.3V operation with 5V I/O signal tolerance

- Embedded power regulator for 1.8V core operation

- 0.18 µm CMOS technology

- 100LQFP 14X14 Lead-Free Package

Specifications:

Product Attribute	Attribute Value
Manufacturer:	WIZnet
Product Category:	Ethernet ICs
Mounting Style:	SMD/SMT
Package / Case:	LQFP-100
Product:	Ethernet Controllers
Standard:	10BASE-T, 100BASE-TX
Number of Transceivers:	1 Transceiver
Data Rate:	10 Mb/s, 100 Mb/s
Interface Type:	8 bit/16 bit, MDI, MDI-X
Supply Voltage - Min:	3 V
Supply Voltage - Max:	3.6 V
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Brand:	WIZnet
Duplex:	Full Duplex
Height:	1.4 mm
Length:	14 mm
Moisture Sensitive:	Yes
Product Type:	Ethernet ICs
Subcategory:	Communication & Networking ICs
Width:	14 mm
Unit Weight:	0.165260 oz

Applications:

The W5300 is well-suited for many embedded applications, including:

- Home Network Devices: Set-Top Boxes, PVRs, Digital Media Adapters

- Serial-to-Ethernet: Access Controls, LED displays, etc.

- Parallel-to-Ethernet: POS / Mini Printers, Copiers

- USB-to-Ethernet: Storage Devices, Network Printers

- GPIO-to-Ethernet: Home Network Sensors

- Security Systems: DVRs, Network Cameras, Kiosks

- Factory and Building Automation

- Medical Monitoring Equipment

- Embedded Servers
