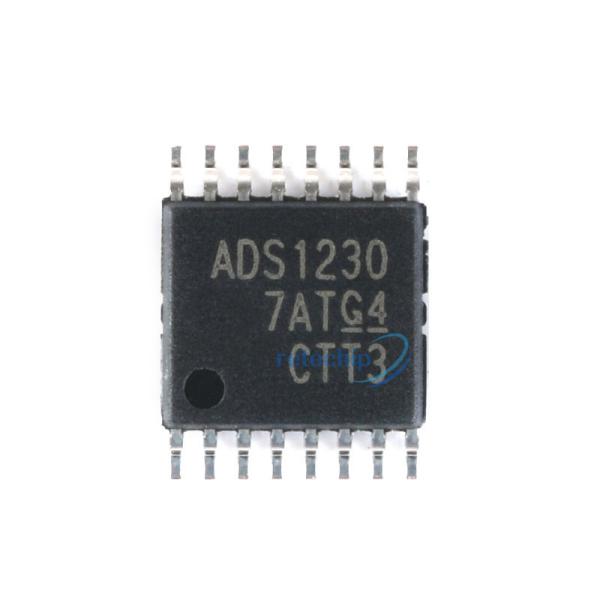

ADS1230IPWR Integrated Circuit Components IC 20bit Analog To Digital Converter Chips

Applications

• Weigh Scales .

• Pressure Sensors.

• Industrial Process Control.

Specifications

Description

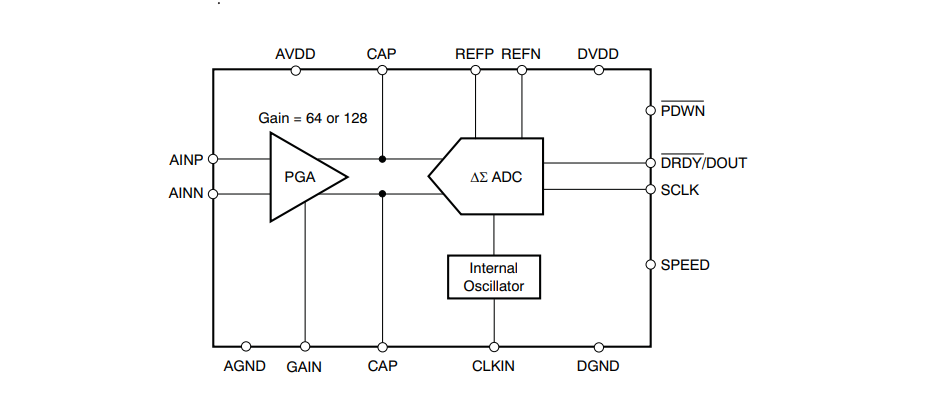

The ADS1230 is a precision 20-bit analog-to-digital converter (ADC). With an onboard low-noise programmable gain amplifier (PGA), onboard oscillator, and precision 20-bit delta-sigma ADC, the ADS1230 provides a complete front-end solution for bridge sensor applications including weigh scales,strain gauges, and pressure sensors.

The low-noise PGA has a gain of 64 or 128, supporting a full-scale differential input of ±39mV or ±19.5mV, respectively. The delta-sigma ADC has 20 Rejection at bit effective resolution and is comprised of a 3rd10SPS order modulator and 4th-order digital filter. Two data Measurements 60Hz rejection) and 80SPS. The ADS1230 can be clocked by the internal oscillator or an external clock source. Offset calibration is performed on-demand, and the ADS1230 can be put in a low-power standby mode or shut off completely in power-down mode.All of the features of the ADS1230 are controlled by Temperature Range dedicated pins; there are no digital registers to program. Data are output over an easily-isolated serial interface that connects directly to the MSP430

The ADS1230 is available in a TSSOP-16 package and is specified from –40°C to +85°C.

Features

• Complete Front-End for Bridge Sensor converter (ADC).

• Onboard PGA with Gain of 64 or 128

• Onboard Oscillator

• RMS Noise:

40nV at 10SPS (G = 128)

88nV at 80SPS (G = 128)

• 18-Bit Noise-Free Resolution

• Selectable 10SPS or 80SPS Data Rates ±19.5mV, respectively. The delta-sigma ADC has 20-

• Simultaneous 50Hz and 60Hz Rejection at bit effective resolution and is comprised of a 3rd10SPS

• External Voltage Reference up to 5V for rates are supported: 10SPS (with both 50Hz and Ratiometric Measurements

• Simple, Pin-Driven Control

• Two-Wire Serial Digital Interface

• Tiny 16-pin TSSOP Package

• Supply Range: 2.7V to 5.3V

• –40°C to +85°C Temperature Range
