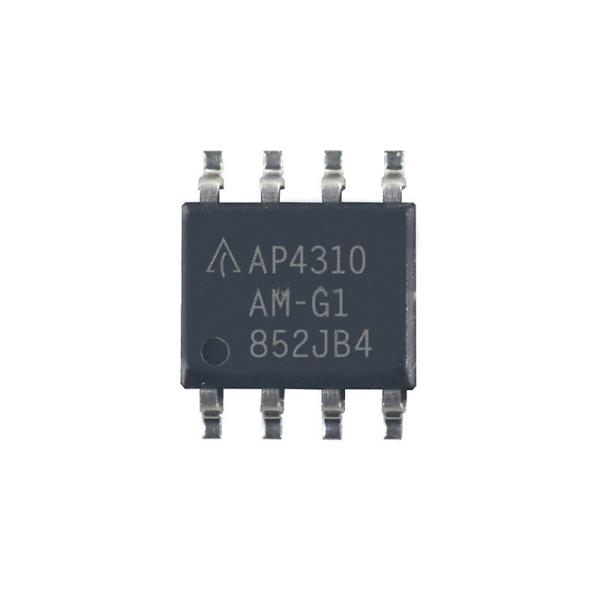

AP4310AMTR-G1 Amplifier Integrated Circuits 0.5mV 75uA 1Mhz Op Amps Dual Op Amp
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Diodes Incorporated | |
| Product Category: | Operational Amplifiers - Op Amps |
| SMD/SMT | |
| SOIC-8 | |
| 2 Channel | |
| 36 V | |
| 1 MHz | |
| 40 mA | |
| 500 mV/us | |
| 500 uV | |
| 3 V | |
| - 40 C | |
| + 105 C | |
| 20 nA | |
| 75 uA | |
| No Shutdown | |
| 90 dB | |
| Reel | |
| Ios - Input Offset Current: | 2 nA |
| Moisture Sensitive: | Yes |
| Output Type: | Rail-to-Rail |
| PSRR - Power Supply Rejection Ratio: | 90 dB |
Description
The AP4310A is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies
The device contains two Op Amps and a 2.5V precision shunt voltage reference. Op Amp 1 is designed for voltage control with its noninverting input internally connected to the output of the shunt regulator. Op Amp 2 is for current control with both inputs uncommitted. The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost. The AP4310A is available in SO-8 package.
Features
OP Amp
• Input Offset Voltage: 0.5mV
• Supply Current: 75
• A per OP Amp at 5.0V Supply Voltage
• Unity Gain Bandwidth:1MHz
• Output Voltage Swing: 0 to VCC-1.5V
• Power Supply Range: 3 to 36V
Voltage Reference
• Fixed Output Voltage Reference: 2.5V
• Reference Voltage Tolerance :±0.4%
• Sink Current Capability: 0.05 to 80mA
• Typical Output Impedance: 0.2Ω
• Totally Lead-free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
Applications
• Battery Charger
• Switching Power Supply
