Amplifier Integrated Circuits TDA7293 120V 100W Audio Amplifier Speaker Mute And Standby
Specifications
| Product Attribute | Attribute Value |
|---|---|
| TDA7293 | |
| Class-AB | |
| 100 W | |
| 8 Ohms | |
| 50 V | |
| 12 V | |
| + 70 C | |
| Tube | |
| Dual Supply Voltage: | +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V |
| Gain: | 80 dB |
| Height: | 10.7 mm |
| Ib - Input Bias Current: | 1 uA |
| Input Type: | Single |
| Length: | 19.6 mm |
| Maximum Dual Supply Voltage: | +/- 50 V |
| Minimum Dual Supply Voltage: | +/- 12 V |
| Number of Channels: | 1 Channel |
| Operating Supply Current: | 10 A |
| Operating Supply Voltage: | +/- 60 V |
| Output Current: | 10 A |
| Output Signal Type: | Single |
| Pd - Power Dissipation: | 50000 mW |
| Vos - Input Offset Voltage: | 10 mV |
| Width: | 5 mm |
| Unit Weight: | 0.200003 oz |
Description

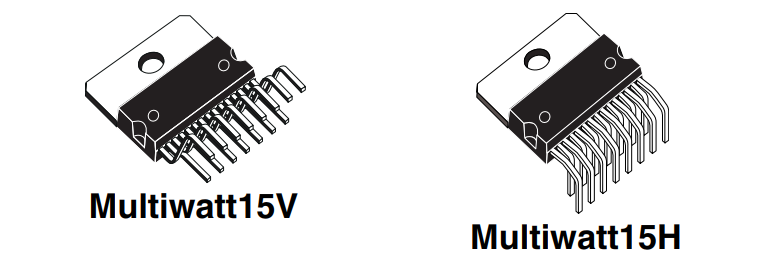

The TDA7293 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications, such as home stereo, self powered loudspeakers and Topclass TV. Thanks to the wide voltage range and to the high output current capability it is able to supply the highest power into both 4-Ω and 8-Ω loads.
The built-in muting function with turn-on delay simplifies the remote operation avoiding on-off switching noises.
Parallel mode is possible by connecting several devices and using pin11. High output power can be delivered to very low impedance loads, so optimizing the thermal dissipation of the system
Features
• Multipower BCD technology
• Very high operating voltage range (±50 V)
• DMOS power stage
• High output power (100 W into 8 Ω @ THD =10%, with VS = ±40 V)
• Muting and stand-by functions
• No switch on/off noise
• Very low distortion
• Very low noise
• Short-circuit protected (with no input signal applied) Thermal shutdown
• Clip detector
• Modularity (several devices can easily be connected in parallel to drive very low impedances)
