| Brand Name : | TOSHIBA |
| Model Number : | TB6612FNG |
| Price : | Please contact us |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 20000pcs Per Mouth |
| Delivery Time : | 3-5 work days |
TB6612FNG Stepper Motor Controller IC Driver For Dual DC Motor 2.5V To 13.5V 100kHz
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Toshiba | |
| Product Category: | Motor / Motion / Ignition Controllers & Drivers |
| Brushed DC Motor Drivers | |
| 2 Phase | |
| 2.5 V to 13.5 V | |
| 1.2 A | |
| 1.5 mA | |
| - 20 C | |
| + 85 C | |
| SMD/SMT | |
| SSOP-24 | |
| Reel | |
| Load Voltage Rating: | 5 V |
| Moisture Sensitive: | Yes |
| Number of Outputs: | 2 Output |
| Operating Frequency: | 100 kHz |
| Output Voltage: | 15 V |
| Unit Weight: | 0.059966 oz |
Description

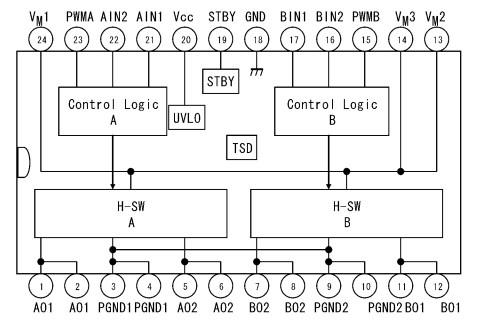

TB6612FNG is a driver IC for DC motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.
Features
• Power supply voltage: VM = 15 V(Max)
• Output current: IOUT = 1.2 A(ave)/3.2 A (peak)
• Output low ON resistor: 0.5Ω (upper+lower Typ. @ VM ≥ 5 V)
• Standby (Power save) system
• CW/CCW/short brake/stop function modes
• Built-in thermal shutdown circuit and low voltage detecting circuit
• Small faced package(SSOP24: 0.65 mm Lead pitch)
