Usb Audio Interface Ic MAX232IN Interface IC RS-232 Interface IC Dual EIA-232 Driver Receiver
Applications
• TIA/EIA-232-F
• Battery-Powered Systems
• Terminals
• Modems
• Computers
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Texas Instruments | |
| Product Category: | RS-232 Interface IC |
| Through Hole | |
| PDIP-16 | |
| 120 kb/s | |
| 2 Driver | |
| 2 Receiver | |
| 5.5 V | |
| 4.5 V | |
| 10 mA | |
| - 40 C | |
| + 85 C | |
| Tube | |
| Height: | 4.57 mm |
| Length: | 19.3 mm |
| Operating Supply Voltage: | 5 V |
| Product Type: | RS-232 Interface IC |
| Propagation Delay Time: | 0.5 us |
| Subcategory: | Interface ICs |
| Supply Type: | Single Supply |
| Width: | 6.35 mm |
Description
The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels.

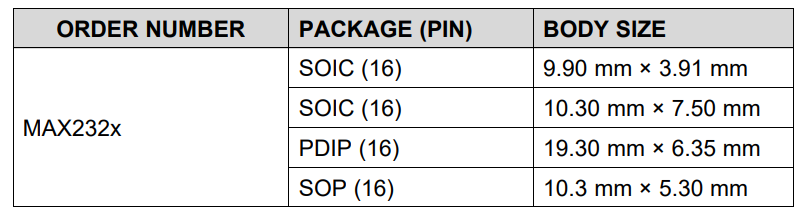

Device Information
Features
• Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28
• Operates From a Single 5-V Power Supply With 1.0-µF Charge-Pump Capacitors
• Operates up to 120 kbit/s
• Two Drivers and Two Receivers
• ±30-V Input Levels
• Low Supply Current: 8 mA Typical
• ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A)
• Upgrade With Improved ESD (15-kV HBM) and 0.1-µF Charge-Pump Capacitors is Available With the MAX202 Device
