IRFP4568PBF Mosfet Power Transistor 150V 171 5.9mOhm N-Channel Mos Solar Power Inverter
Applications
SMPS
UPS
Solar power inverter
DC motor drives
Battery powered applications
High Efficiency Synchronous Rectification in SMPS
Uninterruptible Power Supply
High Speed Power Switching
Hard Switched and High Frequency Circuits
Description

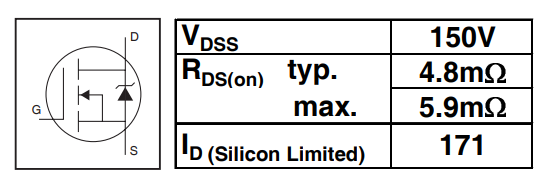

150V Single N-Channel StrongIRFET™ Power MOSFET in a TO-247 package
The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices
are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio
addresses a broad range of applications including DC motors, battery management systems, inverters, and
DC-DC converters.
Features
Specifications
| Parametrics | IRFP4568 |
|---|---|
| Battery voltage | 72-96 V |
| Budgetary Price €/1k | 3.9 |
| ID (@25°C) max | 171 A |
| Mounting | THT |
| Operating Temperature min max | -55 °C 175 °C |
| Ptot max | 517 W |
| Package | TO-247 |
| Polarity | N |
| QG (typ @10V) | 151 nC |
| Qgd | 55 nC |
| RDS (on) (@10V) max | 5.9 mΩ |
| RthJC max | 0.29 K/W |
| Tj max | 175 °C |
| VDS max | 150 V |
| VGS(th) min max | 4 V 3 V 5 V |
| VGS max | 30 V |
