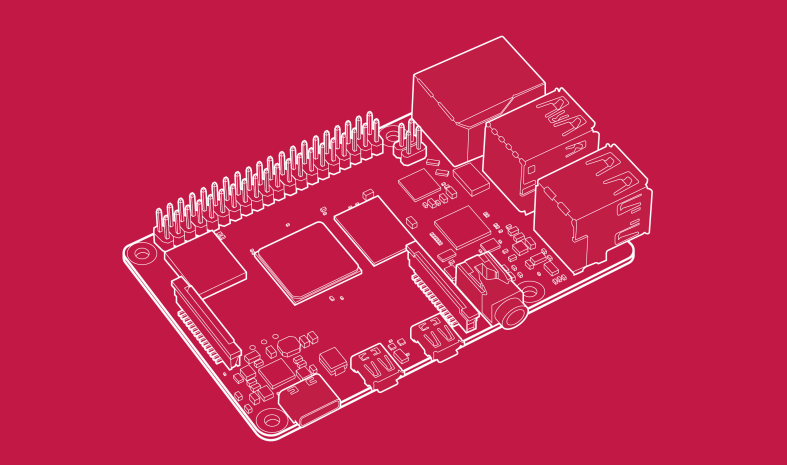

Raspberry Pi 4 Model B Development Board Sc01939 Arm Cortex Raspberry Pi 4 Model B

Description

Raspberry Pi 4 Model B is the latest product in the popular Raspberry Pi range of computers. It

offers ground-breaking increases in processor speed, multimedia performance, memory, and

connectivity compared to the prior-generation Raspberry Pi 3 Model B+, while retaining backwards

compatibility and similar power consumption. For the end user, Raspberry Pi 4 Model B provides

desktop performance comparable to entry-level x86 PC systems.

This product’s key features include a high-performance 64-bit quad-core processor, dual-display

support at resolutions up to 4K via a pair of micro-HDMI ports, hardware video decode at up to

4Kp60, up to 4GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 5.0, Gigabit Ethernet,

USB 3.0, and PoE capability (via a separate PoE HAT add-on).

The dual-band wireless LAN and Bluetooth have modular compliance certification, allowing the

board to be designed into end products with significantly reduced compliance testing, improving

both cost and time to market.

Features

Processor:

Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

Memory: 1GB, 2GB or 4GB LPDDR4-2400 SDRAM (depending on model)

Connectivity:

2.4 GHz and 5.0 GHz IEEE 802.11b/g/n/ac wireless

LAN, Bluetooth 5.0, BLE

Gigabit Ethernet

2 × USB 3.0 ports

2 × USB 2.0 ports.

GPIO: Standard 40-pin GPIO header (fully backwards-compatible with previous boards)

Video & sound:

2 × micro HDMI ports (up to 4Kp60 supported)

2-lane MIPI DSI display port

2-lane MIPI CSI camera port

4-pole stereo audio and composite video port

Multimedia:

H.265 (4Kp60 decode);

H.264 (1080p60 decode, 1080p30 encode);

OpenGL ES, 3.0 graphics

SD card support:

Micro SD card slot for loading operating system and data storage

Input power:

5V DC via USB-C connector (minimum 3A1 )

5V DC via GPIO header (minimum 3A1 )

Power over Ethernet (PoE)–enabled (requires separate PoE HAT)

Environment: Operating temperature 0–50ºC

Applications

■ As a usage scenario for personal computers

■ Usage scenario as a server

■ Usage scenarios as multimedia terminals

■ Usage scenarios as IoT devices
