W29N01HVSINA NAND Flash Memory ECC 1Gbit 2.7V to 3.6V 35mA 128M x 8 TSOP-48
Specifications
| Product Attribute | Attribute Value |
|---|---|
| SMD/SMT | |
| 1 Gbit | |
| 128 M x 8 | |
| 8 bit | |
| 2.7 V | |
| 3.6 V | |
| 35 mA | |
| - 40 C | |
| + 85 C |
Description
The W29N01HV (1G-bit) NAND Flash memory provides a storage solution for embedded systems with limited space, pins and power. It is ideal for code shadowing to RAM, solid state applications and storing media data such as, voice, video, text and photos. The device operates on a single 2.7V to 3.6V power supply with active current consumption as low as 25mA 10uA for CMOS standby current.
The W29N01HV supports the standard NAND flash memory interface using the multiplexed 8-bit bus to transfer data, addresses, and command instructions. The five control signals, CLE, ALE, #CE, #RE and #WE handle the bus interface protocol. Also, the device has two other signal pins, the #WP (Write Protect) and the RY/#BY (Ready/Busy) for monitoring the device status.
Pin assignment 48-pin TSOP1(x8)

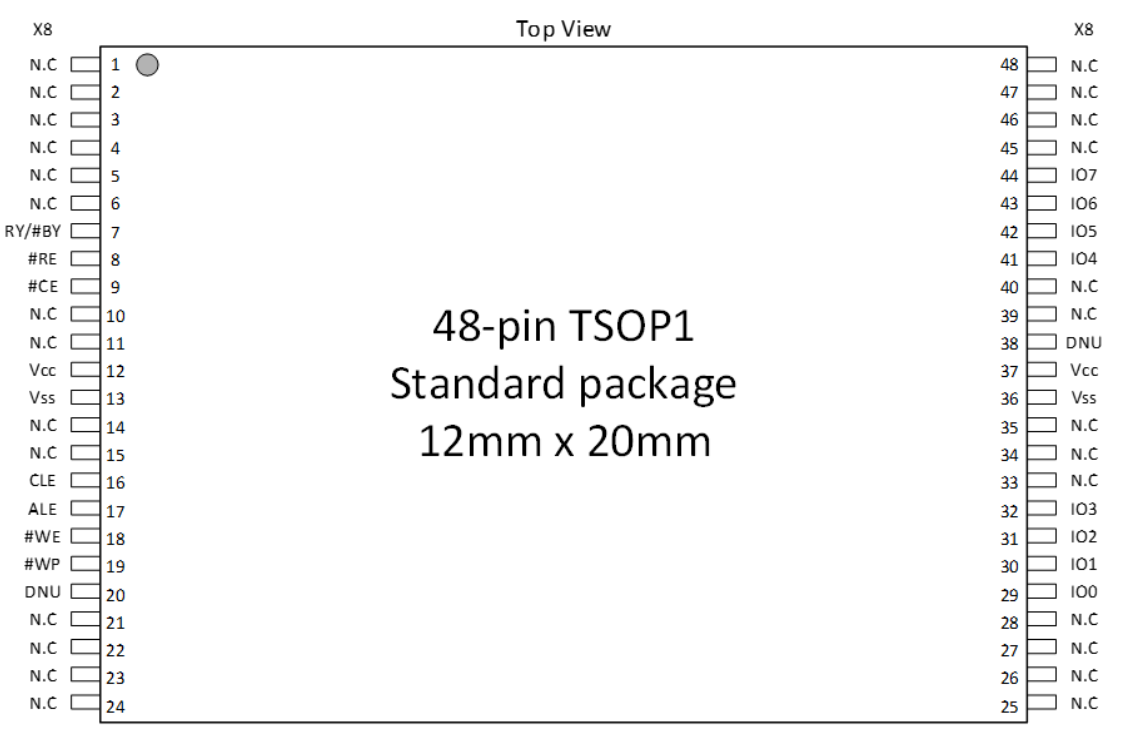

Figure 3-1 Pin Assignment 48-pin TSOP1 (Package code S)
Features
• Basic Features
– Density : 1Gbit (Single chip solution)
– Vcc : 2.7V to 3.6V – Bus width : x8
– Operating temperature
• Industrial: -40°C to 85°C
• Single-Level Cell (SLC) technology.
• Organization – Density: 1G-bit/128M-byte
– Page size
• 2,112 bytes (2048 + 64 bytes)
– Block size
• 64 pages (128K + 4K bytes)
