W25Q64JVXGIQ NOR Flash Memory 64Mbit DTR 2.7V to 3.6V 133MHz SPI Flash XSON-8
Specifications
| Product Attribute | Attribute Value |
|---|---|
| Marking Code | Q64JVXGIQ |
| 64 Mbit | |
| 2.7 V | |
| 3.6 V | |
| SPI | |
| 133 MHz | |
| 8 M x 8 | |
| 8 bit | |
| - 40 C | |
| + 85 C |
Description
The W25Q64JV (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on 2.7V to 3.6V power supply with current consumption as low as 1µA for power-down. All devices are offered in space-saving packages.

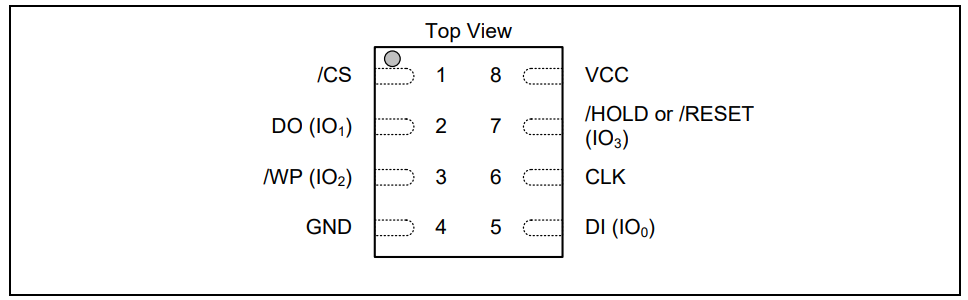

Pad Configuration WSON 6x5-mm/ 8x6-mm, XSON 4x4-mm
Figure 1b. W25Q64JV Pad Assignments, 8-pad WSON 6x5-mm/8x6 (Package Code ZP, ZE)
Features
• New Family of SpiFlash Memories
– W25Q64JV: 64M-bit / 8M-byte
– Standard SPI: CLK, /CS, DI, DO
– Dual SPI: CLK, /CS, IO0, IO1
– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
– Software & Hardware Reset(1)
• Highest Performance Serial Flash
– 133MHz Single, Dual/Quad SPI clocks
– 266/532MHz equivalent Dual/Quad SPI
– Min. 100K Program-Erase cycles per sector
– More than 20-year data retention
