| Brand Name : | Nuvoton |
| Model Number : | M058LDN |
| Certification : | No.2023050510 |
| Price : | Negotiate |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 30000pcs Per Mouth |
| Delivery Time : | 1-4 work days |
32-Bit Mcu Microcontroller M058LDN ARM Cortex-M0 32-Bit Single-Core 50MHz 32KB FLASH 48-LQFP
> Features
► Core
► ARM® Cortex®-M0 core running up to 50 MHz
► One 24-bit system timer
► Supports Low Power Sleep mode
► A single-cycle 32-bit hardware multiplier
► NVIC for the 32 interrupt inputs, each with 4-levels of priority
► Supports Serial Wire Debug (SWD) interface and two
watchpoints/four breakpoints
► Provides hardware divider and supports signed 32-bit dividend,
16-bit divisor operation
► Wide Operating Voltage Range: 2.5V to 5.5V
► Memory
► 8KB/16KB/32KB/64KB Flash for program memory (APROM)
► 4KB Flash for data memory (Data Flash)
► 4KB Flash for loader (LDROM)
► 4KB SRAM for internal scratch-pad RAM (SRAM)
► Clock Control
► Programmable system clock source
► 22.1184 MHz internal oscillator
► 4~24 MHz external crystal input
► 10 kHz low-power oscillator for Watchdog Timer and wake-up in
Sleep mode
► PLL allows CPU operation up to the maximum 50 MHz
► I/O Port
► Up to 40 general-purpose I/O (GPIO) pins for LQFP-48 package
► Four I/O modes:
► Quasi-bidirectional
► Push-Pull output
► Open-Drain output
► Input only with high impendence
► TTL/Schmitt trigger input selectable
► I/O pin can be configured as interrupt source with edge/level
setting
► Supports high driver and high sink I/O mode
► Configurable I/O mode after POR
► Timer
► Provides four channel 32-bit timers; one 8-bit pre-scale counter
with 24-bit up-timer for each timer
► Independent clock source for each timer
► 24-bit timer value is readable through TDR (Timer Data Register)
► Provides One-shot, Periodic and Toggle operation modes
► Provides event counter function
► Provides external capture/reset counter function
► Two more timer clock sources from external trigger and internal
10 kHz
► TIMER wake-up function
► External capture input source selected from ACMP or TxEX
► Toggle mode output pins selected from TxEX or TMx
► Inter-Timer trigger mode
> Description
The NuMicro M051 DN/DE series 32-bit microcontroller is embedded
with ARM Cortex-M0 core for industrial control and applications
which need rich communication interfaces. The NuMicro M051 DN/DE
series includes the following part numbers: M052xDN/xDE,
M054xDN/xDE, M058xDN/xDE and M0516xDN/xDE.
The NuMicro M051 DN/DE series can run up to 50 MHz and operate at
2.5V ~ 5.5V, -40℃ ~ 85℃, while M05xxDE operates at -40℃ ~ 105℃, and
thus can afford to support a variety of industrial control and
applications which need high CPU performance. The NuMicro M051
DN/DE series offers 8/16/32/64 KB flash, 4 KB Data Flash, 4 KB
flash for the ISP, and 4 KB SRAM.

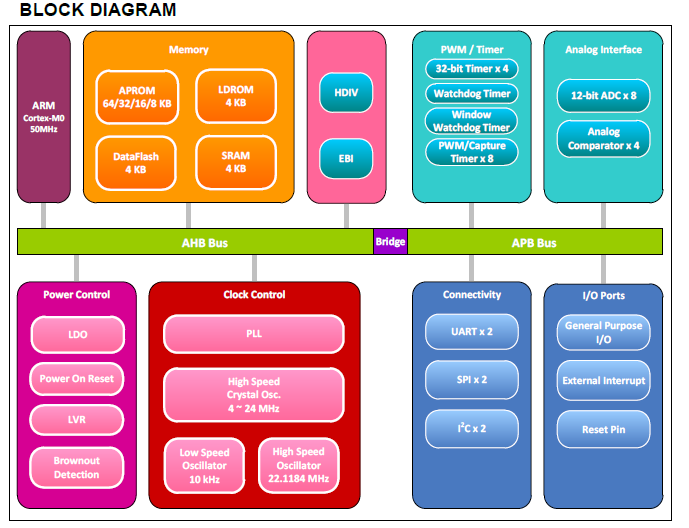

Many system level peripheral functions, such as I/O Port, EBI
(External Bus Interface), Timer, UART, SPI, I2C, PWM, ADC, Watchdog
Timer, Window Watchdog Timer, Analog Comparator and Brown-out
Detector, have been incorporated into The NuMicro M051 DN/DE series
in order to reduce component count, board space and system cost.
These useful functions make The NuMicro M051 DN/DE series powerful
for a wide range of applications.
Additionally, the NuMicro M051 DN/DE series is equipped with ISP
(In-System Programming) and ICP (In-Circuit Programming) functions,
and IAP (In-Application Programming), which allow the user to
update the program memory without removing the chip from the actual
end product.
> Specifications
| Product Attribute | Attribute Value |
|---|---|
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 50MHz |
| Connectivity | EBI/EMI, I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVR, POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
