dsp integrated circuits ADAU1701JSTZ-RL 28-56 Bit Audio Processor Two ADCs and Four DACs

SigmaDSP 28-/56-Bit Audio Processor with Two ADCs and Four DACs

> Applications

Multimedia speaker systems

MP3 player speaker docks

Automotive head units

Minicomponent stereos

Digital televisions

Studio monitors

Speaker crossovers

Musical instrument effects processors

In-seat sound systems (aircraft/motor coaches)

> Features

28-/56-bit, 50 MIPS digital audio processor

2 ADCs: SNR of 100 dB, THD + N of −83 dB

4 DACs: SNR of 104 dB, THD + N of −90 dB

Complete standalone operation

Self-boot from serial EEPROM

Auxiliary ADC with 4-input mux for analog control

GPIOs for digital controls and outputs

Fully programmable with SigmaStudio graphical tool

28-bit × 28-bit multiplier with 56-bit accumulator for full double-precision processing

Clock oscillator for generating a master clock from crystal PLL for generating master clock from 64 × fS, 256 × fS, 384 × fS, or 512 × fS clocks

Flexible serial data input/output ports with I2S-compatible, left-justified, right-justified, and TDM modes

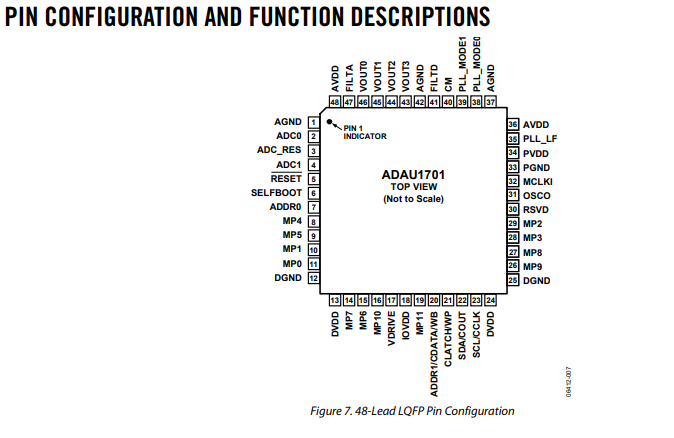

Sampling rates of up to 192 kHz are supported On-chip voltage regulator for compatibility with 3.3V systems 48-lead, plastic LQFP

> Description

The ADAU1701 is a complete single-chip audio system with a 28-/56-bit audio DSP, ADCs, DACs, and microcontroller-like control interfaces. Signal processing includes equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, speaker compensation, and stereo image widening.

This processing can be used to compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality. Its signal processing is comparable to that found in high end studio equipment. Most processing is done in full 56-bit, double precision mode, resulting in very good low level signal performance. The ADAU1701 is a fully programmable DSP.

The easy to use SigmaStudio™ software allows the user to graphically configure a custom signal processing flow using blocks such as biquad filters, dynamics processors, level controls, and GPIO interface controls. ADAU1701 programs can be loaded on power-up either from a serial EEPROM through its own self-boot mechanism or from an external microcontroller.

On power-down, the current state of the parameters can be written back to the EEPROM from the ADAU1701 to be recalled the next time the program is run. Two Σ-Δ ADCs and four Σ-Δ DACs provide a 98.5 dB analog input to analog output dynamic. Each ADC has a THD + N of −83 dB, and each DAC has a THD + N of −90 dB. Digital input and output ports allow a glueless connection to additional ADCs and DACs. The ADAU1701 communicates through an I 2 C® bus or a 4-wire SPI port

> Specifications
