TDK electronic pressure sensors ICS-43434 Multi-Mode Microphone with Digital Output

> Applications

• Wearables

• Smart Televisions

• Remote Controls

• IoT Devices

• Teleconferencing Systems

• Gaming Consoles

• Security Systems

> Features

• Digital I²S interface with high precision 24-bit data

• Wide frequency response from 60 Hz to 20 kHz

• High power supply rejection: −100 dB FS

• Small 3.50 mm × 2.65 mm × 0.98 mm surface-mount package

• Compatible with Sn/Pb and Pb-free solder processes

• RoHS/WEEE compliant

> Description

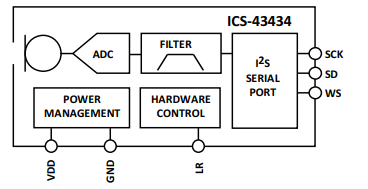

The ICS-43434 is digital I2 S output bottom port microphone. The complete ICS-43434 solution consists of a MEMS sensor, signal conditioning, an analog-to-digital converter, decimation and antialiasing filters, power management, and an industry standard 24-bit I²S interface. The I²S interface allows the ICS-43434 to connect directly to digital processors, such as DSPs and microcontrollers, without the need for an audio codec in the system. The ICS-43434 has multiple modes of operation: High Performance, Low Power (AlwaysOn) and Sleep.

The ICS-43434 has high SNR and 120 dB SPL AOP in all operational modes. The ICS-43434 has a high SNR of 65 dBA and a wideband frequency response. The sensitivity tolerance of the ICS-43434 is ±1 dB, which enables high-performance microphone arrays without the need for system calibration.

The ICS-43434 is available in a small 3.50 mm × 2.65 mm × 0.98 mm surface-mount package. The ICS-43434 is functioncompatible with the ICS-43432 while providing equivalent electro-acoustic performance at lower power consumption and in a smaller package.

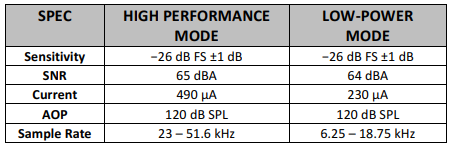

> Specifications
