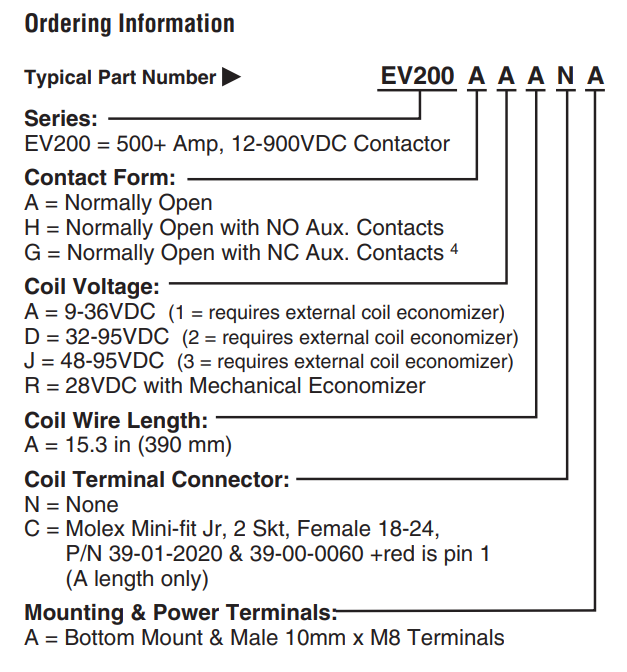

| Model Number : | EV200AAANA |
| Price : | Negotiate |
| Payment Terms : | T/T, Western Union, MoneyGram |
| Supply Ability : | 5000pcs Per Mouth |
| Delivery Time : | 3-5 work days |
KILOVAC EV200 Series Contactor With 1 Form X (SPST-NO) Contacts Rated 500+ Amps, 12-900 Vdc
Specifications
| Product Attribute | Attribute Value |
|---|---|
| TE Connectivity | |
| Product Category: | Industrial Relays |
| Bottom Mount | |
| Industrial Relays | |
| High Voltage | |
| Stud | |
| 1 Form A (SPST-NO) | |
| 500 A | |
| Wire Leads | |
| Non-Latching | |
| 9 VDC to 36 VDC | |
| 38 Ohms | |
| 130 mA | |
| 900 VDC | |
| Copper (Cu) | |
| 80.48 mm | |
| 65.6 mm | |
| 72.3 mm | |
| Application: | Industrial |
| Contact Form: | SPST (1 Form A) |
| Current Rating: | 500 A |
| Power Consumption: | 6 mW |
Description
Designed to be the smallest, lightest weight, lowest cost sealed contactor in the industry with its current rating (500+A carry, 2000A interrupt at 320VDC)
Built-in coil economizer
— only 1.7W hold power @ 12VDC and it limits back EMF to 0V. Models requiring external economizer also available
Optional auxiliary contact for easy monitoring of power contact position n Hermetically sealed
— intrinsically safe, operates in explosive/ harsh environments with no oxidation or contamination of coil or contacts, during long periods of non-operation
Versatile coil/power connections
UL Recognized for the U.S. and Canada (File E208033) All contact ratings & coil versions may not be UL Recognized n CE marked for EC applications
AIAG QS9000 designed, built and approved
RoHS versions available
Features
Contact Arrangement, Power Contacts
— 1 Form A (SPST-NO) Rated Operating Voltage
— 12 - 900 VDC Continuous (Carry) Current, Typical
— 500 A @ 85°C, 400 mcm conductors Consult Factory for required conductors for higher (500+ A) currents Make/Break Current at Various Voltages 1
— See graph next page Break Current at 320VDC 1
— 2,000 A, 1 cycle 3 Contact Resistance, Typ. (@200A)
— 0.2 mohms Load Life
— See graph next page Mechanical Life
— 1 million cycles Contact Arrangement, Auxiliary Contacts
— 1 Form A (SPST-NO) Aux. Contact Current, Max.
— 2A @ 30VDC / 3A @ 125VAC Aux. Contact Current, Min.
— 100mA @ 8V Aux. Contact Resistance, Max.
— 0.417 ohms @ 30VDC / .150 ohms @ 125VAC Operate Time @ 25°C
— Close (includes bounce), Typ.
— 15 ms Bounce (after close only), Max.
— 7 ms Release (includes arcing), Max @ 2000A
— 12 ms Dielectric Withstanding Voltage
— 2,200 Vrms @ sea level (leakage <1mA) Insulation Resistance @ 500VDC
— 100 megohms 2 Shock, 11ms 1/2 Sine, Peak, Operating
— 20 G Vibration, Sine, 80-2000Hz., Peak
— 20 G Operating Ambient Temperature
— -40°C to +85°C
Weight, Nominal
— .95 lb. (.43 kg)
