    Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type

    Ask Lasest Price
    Brand Name : MITSUBISHI
    Model Number : CM200DY-12H
    Price : Negotiate
    Payment Terms : T/T, Western Union, MoneyGram,Google pay
    Supply Ability : 2000pcs Per Mouth
    Delivery Time : 5-7work days
    • Product Details
    • Company Profile

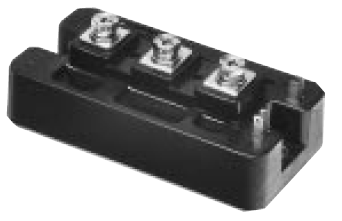

    Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type

    Mitsubishi Igbt Modules CM200DY-12H 200A 1200V High Power Switching Use Insulated Type
    Description:
    Mitsubishi IGBT Modules are designed for use in switching applications.Each module consists of two
    IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery
    free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate,offering

    simplified system assembly and thermal management.

    Applications

    ► AC Motor Control
    Motion/Servo Control
    UPS
    Welding Power Supplies
    Specifications

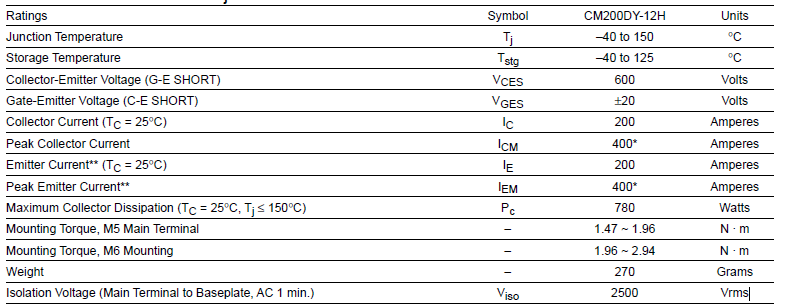

    Absolute Maximum Ratings, Tj = 25 °C unless otherwise specified
    Ratings Symbol CM200DY-12H Units
    Junction Temperature Tj –40 to 150 °C
    Storage Temperature Tstg –40 to 125 °C
    Collector-Emitter Voltage (G-E SHORT) VCES 600 Volts
    Gate-Emitter Voltage (C-E SHORT) VGES ±20 Volts
    Collector Current (TC = 25°C) IC 200 Amperes
    Peak Collector Current ICM 400* Amperes
    Emitter Current** (TC = 25°C) IE 200 Amperes
    Peak Emitter Current** IEM 400* Amperes
    Maximum Collector Dissipation (TC = 25°C, Tj £ 150°C) Pc 780 Watts
    Mounting Torque, M5 Main Terminal – 1.47 ~ 1.96 N · m
    Mounting Torque, M6 Mounting – 1.96 ~ 2.94 N · m
    Weight – 270 Grams
    Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso 2500 Vrms


    Features

    Low Drive Power
    Low VCE(sat)
    Discrete Super-Fast Recovery
    Free-Wheel Diode
    u High Frequency Operation
    Isolated Baseplate for Easy
    Heat Sinking
