IXFK27N80Q N Channel Mosfet 800V 27A 0.32 Rds Power MOSFETs HiPerFET

Description

Features

• IXYS advanced low Qg process

• Low gate charge and capacitances - easier to drive - faster switching

• International standard packages z Low RDS (on) z Rated for unclamped Inductive load

switching (UIS) rated

• Molding epoxies meet UL 94 V-0 flammability classification

Applications

• DC-DC converters z Battery chargers

• Switched-mode and resonant-mode power supplies

• DC choppers z AC motor control

• Temperature and lighting controls

• Specifications

• Product Attribute	Attribute Value
  Product Category:	MOSFET
  Technology:	Si
  Mounting Style:	Through Hole

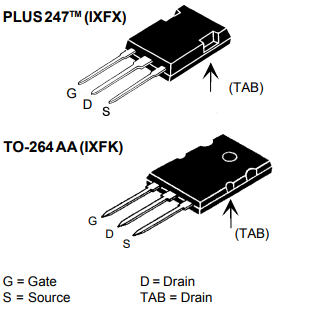

  Package / Case:	TO-264-3
  Transistor Polarity:	N-Channel
  Number of Channels:	1 Channel
  Vds - Drain-Source Breakdown Voltage:	800 V
  Id - Continuous Drain Current:	27 A
  Rds On - Drain-Source Resistance:	320 mOhms
  Vgs - Gate-Source Voltage:	- 20 V, + 20 V
  Vgs th - Gate-Source Threshold Voltage:	4.5 V
  Qg - Gate Charge:	170 nC
  Minimum Operating Temperature:	- 55 C
  Maximum Operating Temperature:	+ 150 C
  Pd - Power Dissipation:	500 W
  Channel Mode:	Enhancement
  Packaging:	Tube
  Brand:	IXYS
  Configuration:	Single
  Fall Time:	13 ns
  Forward Transconductance - Min:	20 S
  Height:	26.16 mm
  Length:	19.96 mm
  Product Type:	MOSFET
